Key Components Inside Low-Voltage Panels: Devices, Protection, and Monitoring
Let us examine the key components that imbue these systems with intelligence and security:
1. Multifunction Meters (MFM)
These compact devices measure everything needed to understand your system’s behavior in real time: voltage, current, power, frequency, and harmonics. They serve as a window for engineers into energy performance and fault diagnostics.
2. Ammeters and Voltmeters
Although the concept dates back further, these devices still play a vital role in rapid field checks. They enable visual verification of load balance and supply conditions without the need for communication tools.
3. Protection Relays
Protection relays act as the brain of switchgear protection. They monitor current and voltage to detect faults and trip circuit breakers when necessary. (Some, such as Restricted Earth Fault (REF) relays, offer highly sensitive earth fault detection for transformer or busbar zones.)

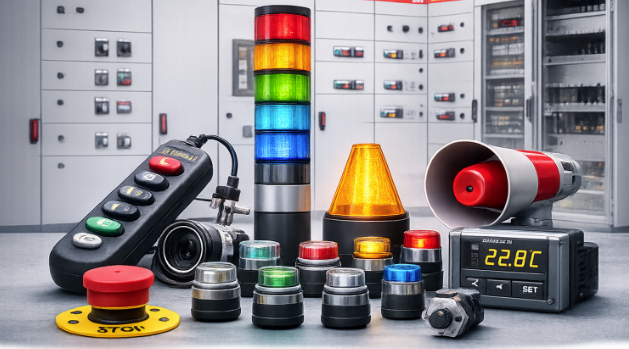

4. Control and Signaling Devices
Push-buttons, selector switches, indicator lights, and mimic diagrams enable operators to safely control and monitor the panel. Each device must be clearly labeled and wired in accordance with IEC standards to prevent human error during operation.

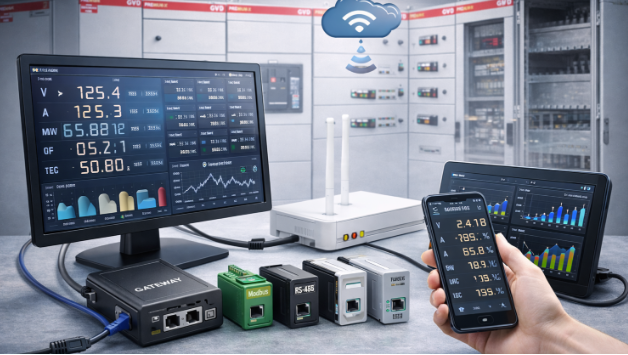

5. Monitoring and Communication Units
Modern panels utilize Modbus, Ethernet, or IEC 61850 communication for remote monitoring. This integration enables smart maintenance, energy monitoring, and SCADA connectivity.
A well-equipped control panel is not about having the greatest number of devices, but rather about selecting the right devices in terms of reliability, safety, and ease of maintenance.
