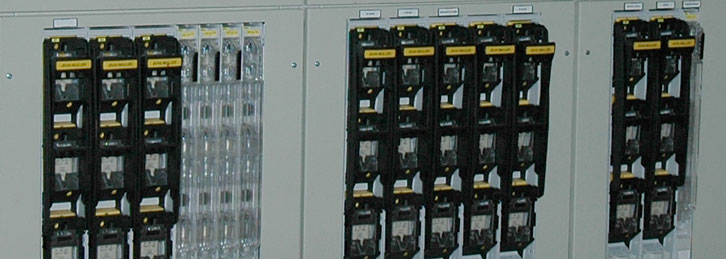

Vertical Load Break Control Centers – VLBCC
These panels, used to optimally control and control the system in low-voltage transformer facilities used in the utility’s operations area, are designed by our expert team using the E-Plan 5.30 drawing program, in accordance with IEC 60617 standards.
Following mechanical assembly based on drawings prepared by our project team, electrical assembly begins. All materials used during the assembly phase are high-quality and comply with standards.
VLBCC panels are designed with sliding and fixed busbars for applications up to 1600 kVA in accordance with TEDAŞ MYD 006 specifications. In electrical installation, electrolytic copper busbars suitable for total power and short-circuit currents are selected and supported at appropriate intervals in accordance with IEC 60439-1 and TS 3367 standards.
VLBCCs perform a number of vital functions in electrical distribution systems:
- For ease of operation and fault tracking in panels where electrical installation is completed, the devices within the panel are labeled and the connection cables are numbered in accordance with the project.
- In order to minimize time losses that may occur during field connections, our project department also prepares marking, cross-reference, terminal plans and material lists in addition to the basic functions of the E-Plan drawing program.
